174055-2
Manufacturer:
TE Connectivity
Mfr.Part #:
174055-2
Datasheet:
Description:

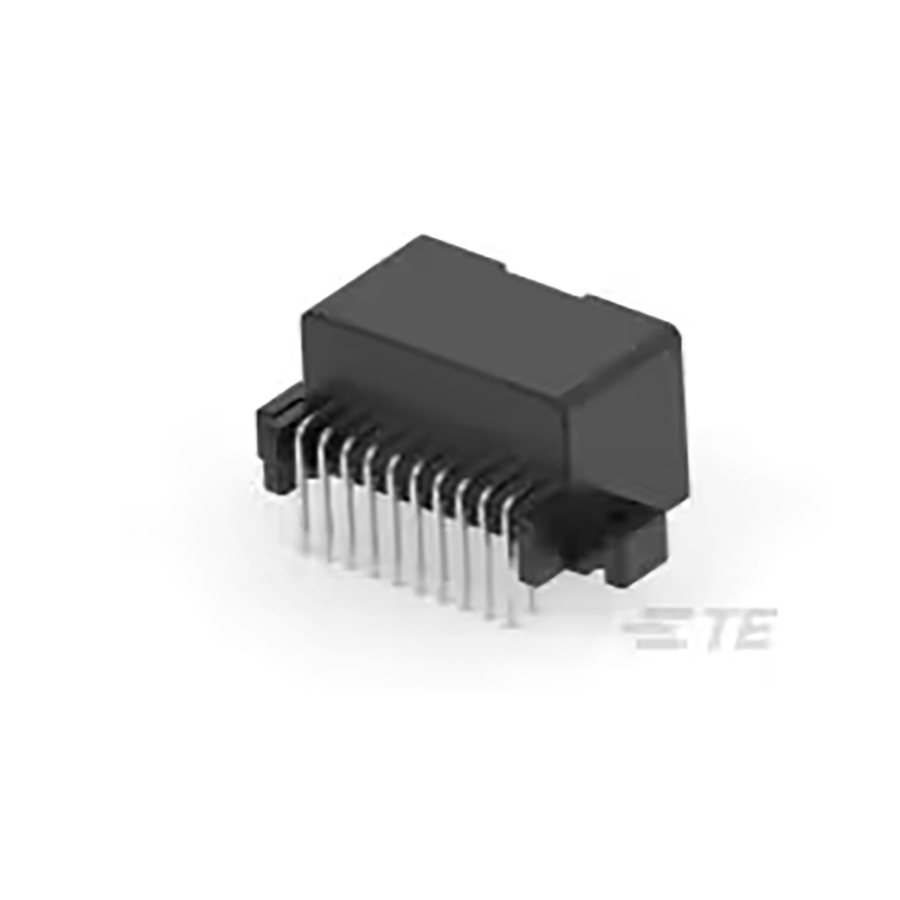

Headers and Wire Housings Through Hole Receptacle, Socket, Tab Number of Positions:20 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 21.7 mm |
| Width | 40 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Packaging | Bulk |
| Depth | 21.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 12 V |
| Flammability Rating | UL94HB |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Unshielded |
| Number of Contacts | 20 |
| ELV | Compliant |
| Tab Width | 1 mm |
| Connector Type | Receptacle, Socket, Tab |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 5.207 mm |
| Housing Material | Polybutylene |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 7.0104 mm |
| PCB Thickness | 1.6 mm |
| Mating Post Length | 7 mm |
| Tab Thickness | 640 µm |
| Number of Signal Positions | 20 |
| Termination Post Length | 4 mm |
Stock: 56
Distributors
pcbx
pcbxUnit Price$2.85869
Ext.Price$2.85869
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.85869 | $2.85869 |
| 10 | $2.52355 | $25.23550 |
| 25 | $2.38731 | $59.68275 |
| 50 | $2.25842 | $112.92100 |
| 100 | $2.13649 | $213.64900 |
| 300 | $2.02114 | $606.34200 |
| 500 | $1.91206 | $956.03000 |
